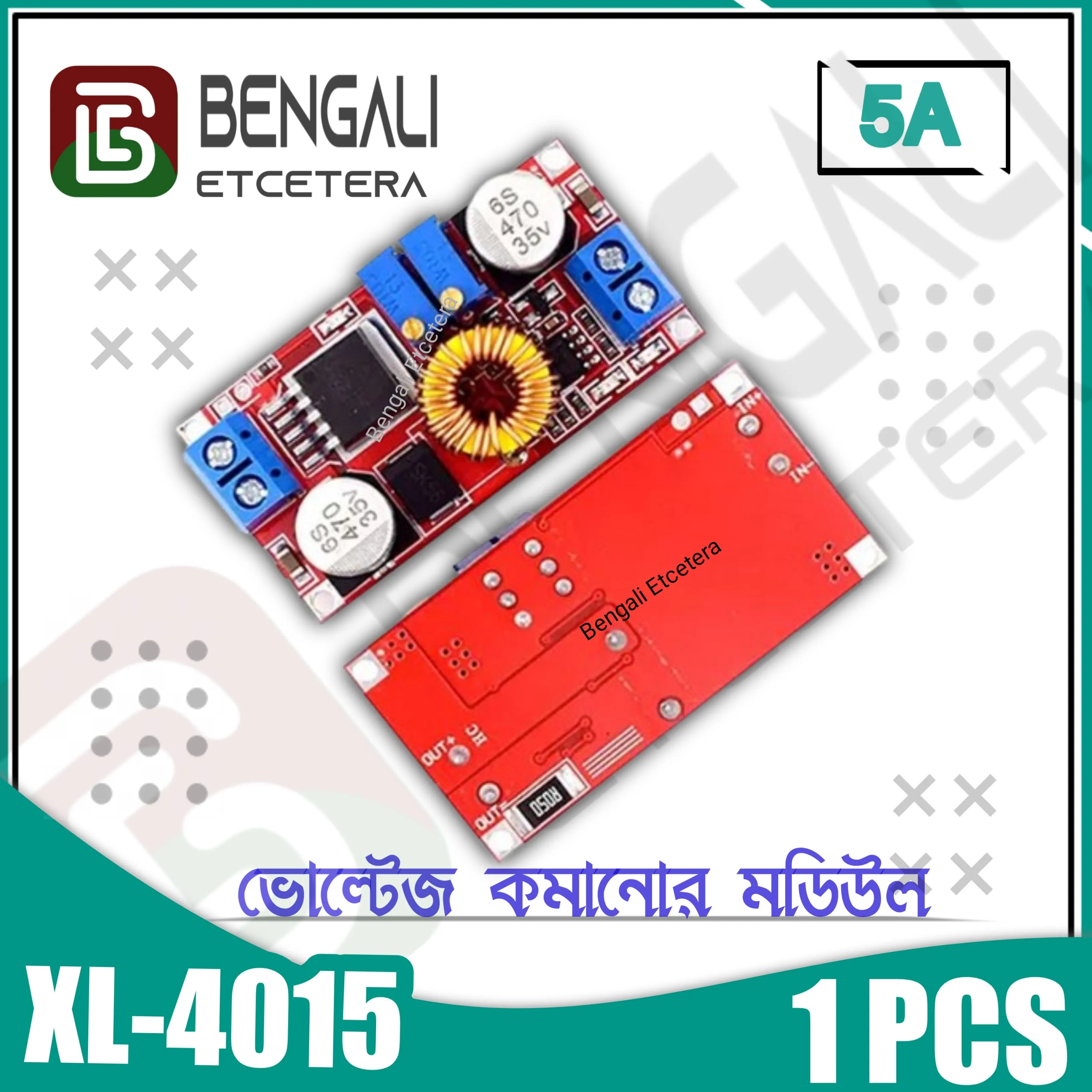

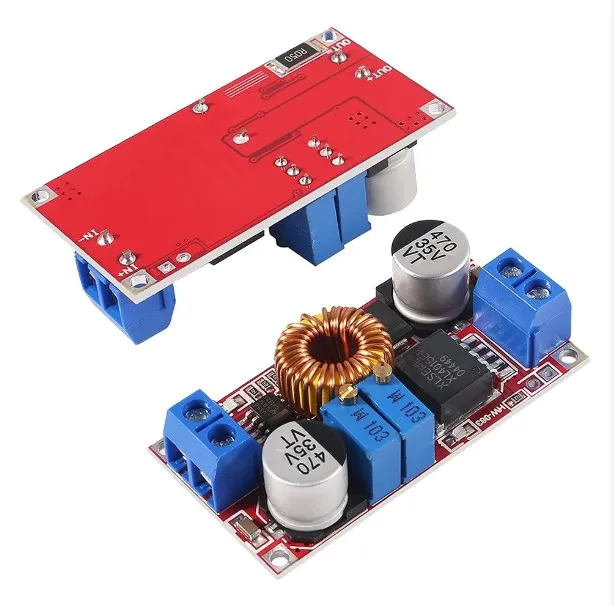

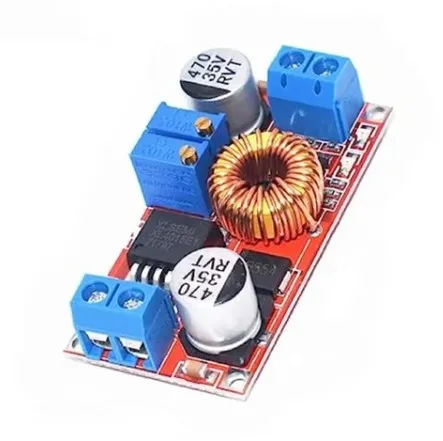

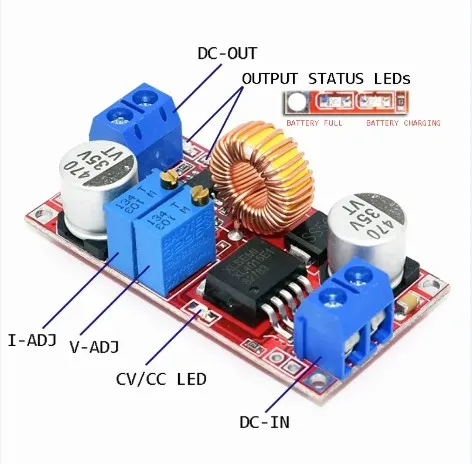

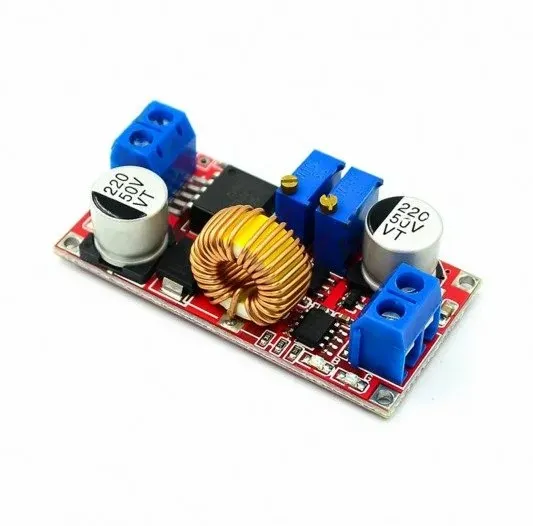

XL4015 Buck Converter 5A DC To DC CC CV Lithium Battery Step down Charging Board Led Power Converter Charger Step Down Module
Select Color:
Product Description
- Output voltage: 0.8V-30V
- Input voltage: 5V-32V Operating Temperature: -40 ° to +85 °
- Voltage Regulation: ± 2.5%
- Load Regulation: ± 0.5%
- Output ripple: 50mV (max) 20M bandwidth
- Switching frequency: 300KHz
- Conversion efficiency: 95% (the highest)
- Output current: adjustable maximum 5A (heat sink recommended at 5A)
- Rectification: non-synchronous rectification
- Module Properties: non-isolated constant current and voltage module.
- Size: 51×26.3x14mm
