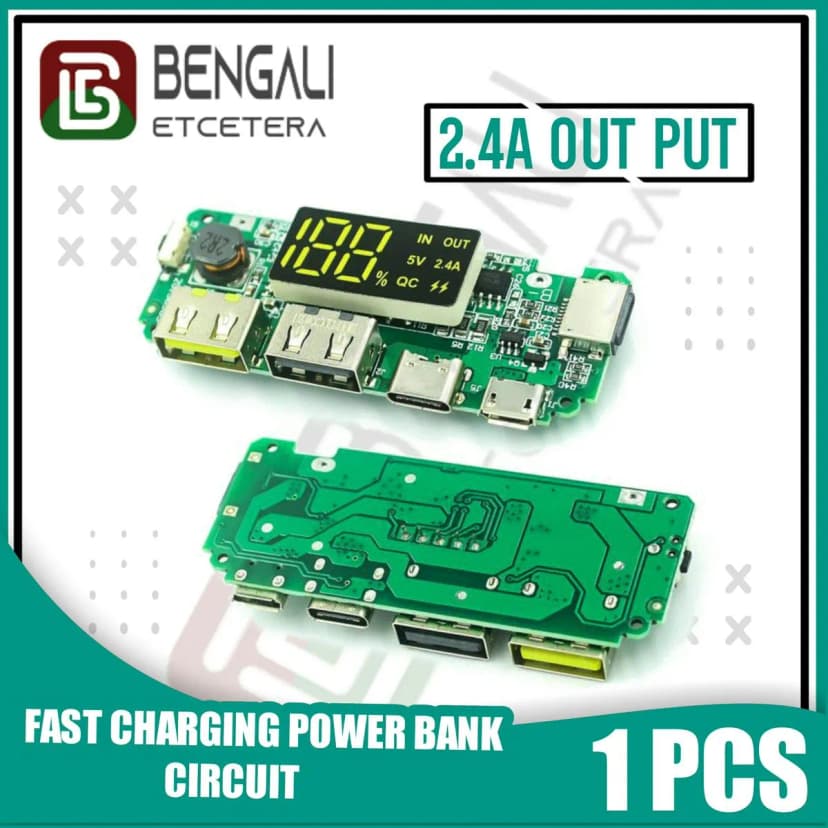

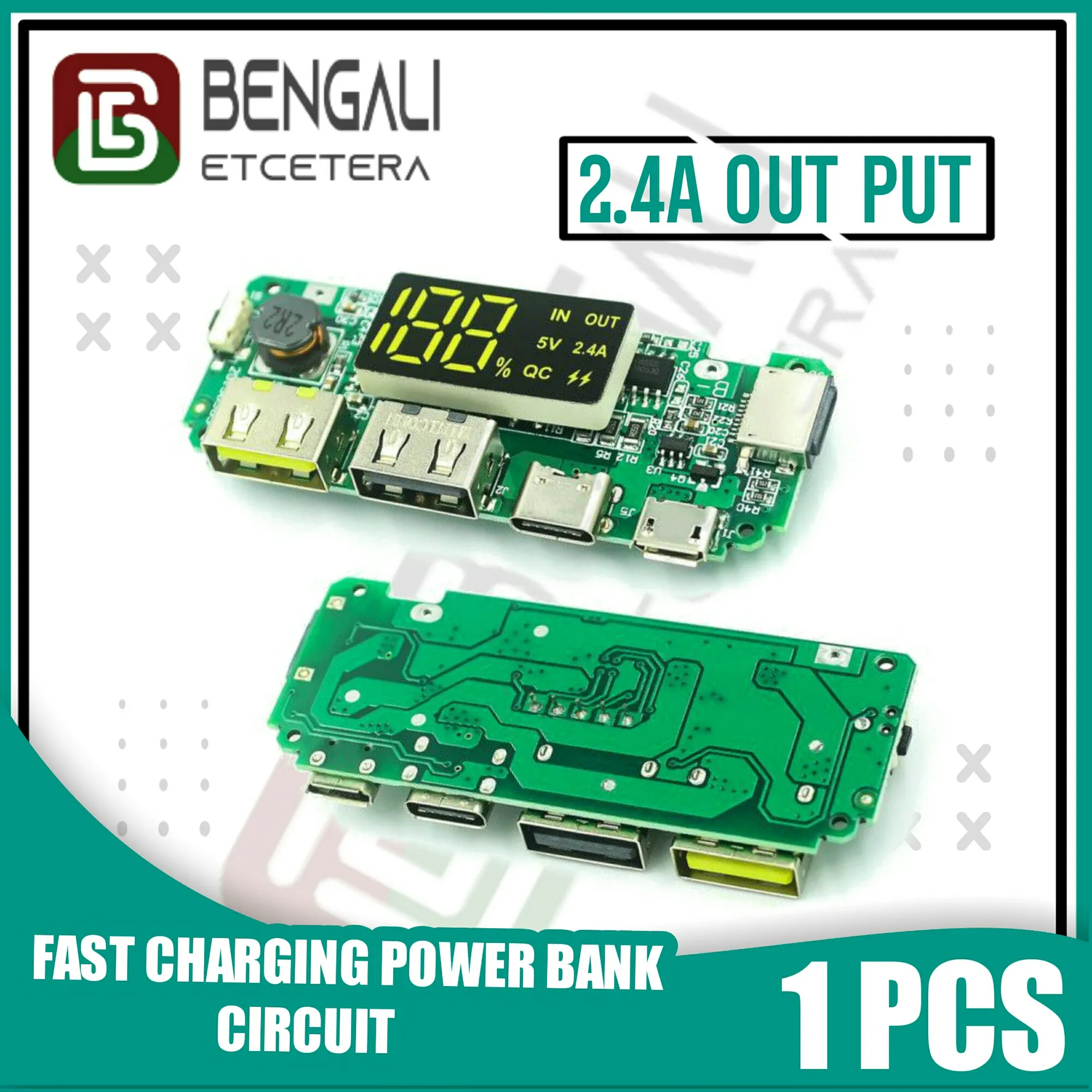

LED Dual USB 5V 2.4A Micro/Type-C USB Mobile Power Bank 18650 Charging Module Lithium Battery Charger Board Circuit Protection

Parameter:

Size: 6.5 * 2.5 * 0.1cm

Weight: 10.8G

IR of PCM : ≤65 mΩ

Allowed 0V change: Yes

Constant current: 2.4A

Dual output current: 5V 2.4A

Input voltage B+ to B-: 3.0 - 4.2V

Charging cable: support three type of USB Cables for iPhone Lightning & Andriod Type-C Micro USB

Button function: Press and hold the button after standby, the LED digital screen displays the power

Specification:

LED Indicator Display

The LED digital screen displays the current battery charge while charging.

When discharging, the LED digital screen displays the current power, and the display is saved in about 30 seconds (double-click the button to resume display).

The system will provide an accurate battery indication after a complete charge and discharge.

Prevent Overcharge Protection

Detection voltage: 4.20±0.05V

Release voltage: 4.100±0.05V

Detection delay time: <200 ms

Prevent Overdischarge Protection

Detection voltage: 3.0±0.10V

Release voltage: 3.10±0.10V

Detection delay time: <100 ms

Short Circuit Protection

Short detection delay time: <50μS

Release Conditions: Cut off load

Normal Current Consumption

Normal current consumption of PCM: Max 60μA

Stanby current consumption: Max 50μA

Suggest Working Conditions

Max continuous charge/discharge current: 1.5/2.4A

Suggest working temperature: -5～45℃

Note:

The positive pole of the battery is connected to B+ and the negative pole is connected to B-, do not reverse it. If it is reversed, it will burn out!!!!

This module is a portable backup power supply with an input that matches the 5.0V adapter to charge the internal battery. Use built-in battery for portable device to provide 5.0V/3.0A USB2.0 supply output for external devices.

Package Included:

1 * Dual USB 5V 2.4A 18650 Charger Power Bank Charging Board
