Product Description

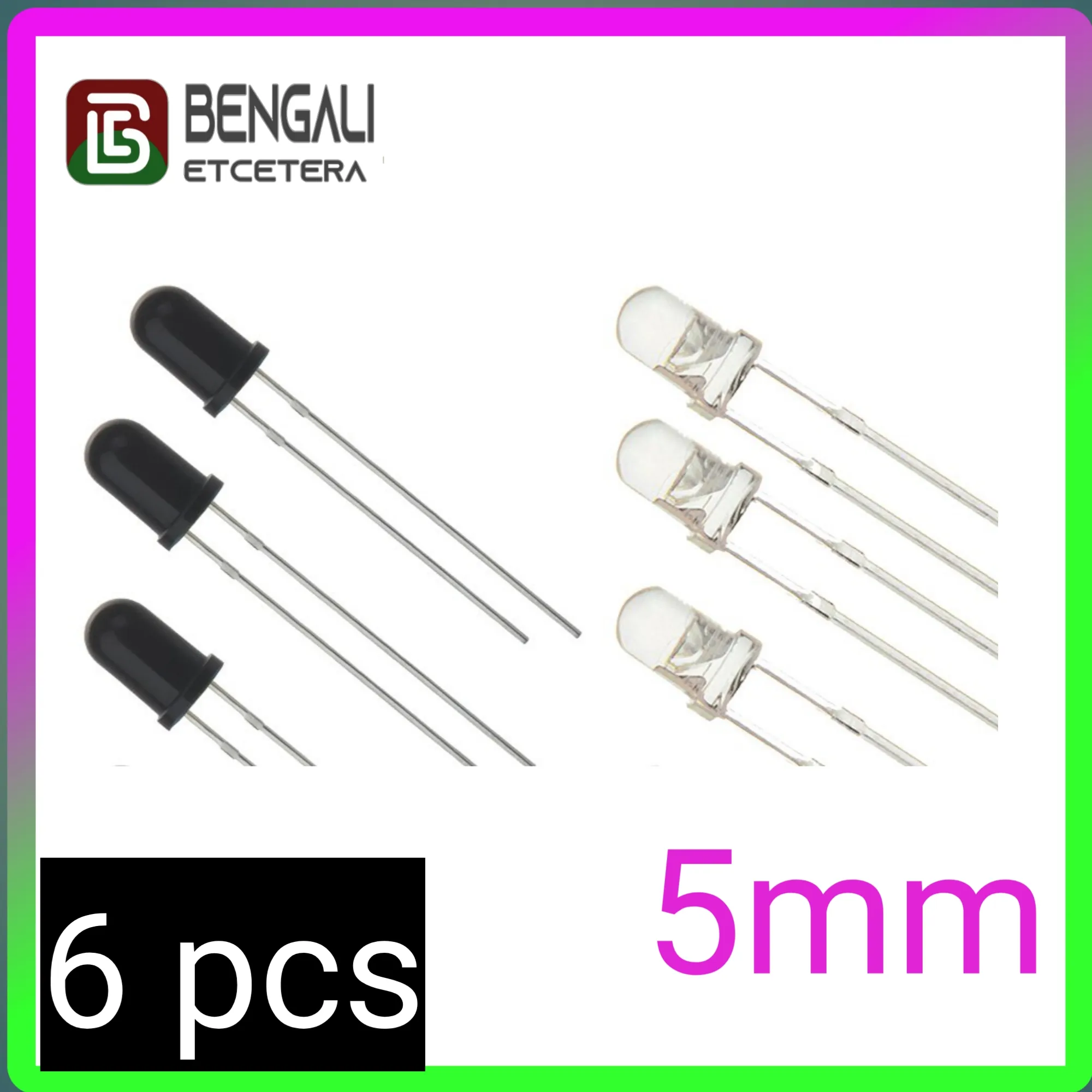

- IR EMITTER, 940NM, 5MM, THROUGH HOLE
- Peak Wavelength: 940nm
- Forward Current If(AV): 100mA
- Rise Time: 800ns
- Fall Time tf: 800ns
- Radiant Intensity: 45mW/Sr
- Viewing Angle: 22°
- Forward Voltage VF Max: 1.35V
- Operating Temperature Min: -40°C
- Operating Temperature Max: 85°C
- Diode Case Style: T-1 3/4 (5mm)
- No. of Pins: 2
- Packaging: Each
- MSL: –
- Angle of Half Sensitivity ±: 22°
- Current If @ Vf: 100mA
- External Diameter: 5.8mm
- External Length / Height: 8.7mm
- LED / Lamp Size: 5mm
- Lead Diameter: 0.5mm
- Lead Length: 25.7mm
- Lead Spacing: 2.54mm
- Operating Temperature Range: -40°C to +85°C
- PIV Max: 5V
- Peak Forward Current: 200mA
- Peak Pulse Current Ippm: 1.5mA
- Radiant Intensity Max: 150mW/Sr
- Radiant Intensity Min: 30mW/Sr
- Radiometric Power: 35mW
- Reverse Leakage Current Max: 10µA
- Storage Temperature Max: 100°C
- Storage Temperature Min: -55°C
- Voltage Vf Typ: 1.35V
- Wavelength Typ: 950nm
- IR Receiver Specification:
- Lens: 5mm Diameter / Black / Round
- Emitting Color: IR 940nm Receiver
- Luminous Intensity: No
- Receiving Angle 90 Degree
- Forward Voltage / Current: 20mA
- Polarity: Anode (Longer Part) Cathode (Shorter Part)
- Emitted Colour : Infrared.
- Lens Color : Black Clear.
- Forward Voltage (V) : 1.2-1.4V.
- Forward Current (mA): 100mA.
- Wavelength (nm): 940nm
