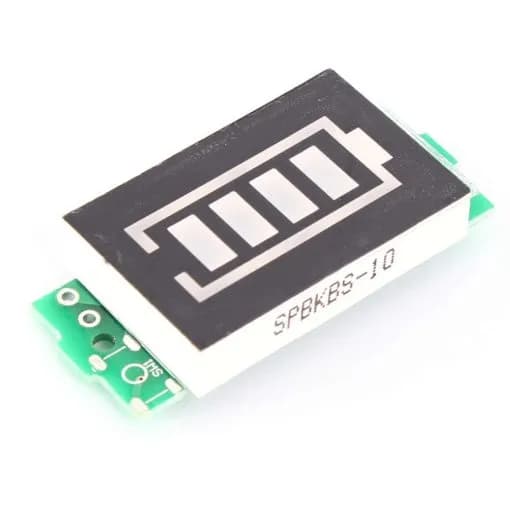

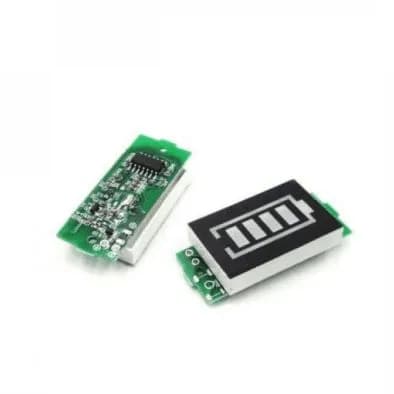

Descriptions: Battery Capacity 4 Digit Indicator Meter 3.7v 4.2v 1S

POWER LEVEL 4 DIGIT Battery Capacity Tester 4 Digit Indicator Meter 3.7V 4.2V 1S Lipo Lithium Li-ion Battery Indicator Meter Power Level Tester With Display Indicator

Specifications

• Items name: Battery Indicator
• Type : 3.7V
• Display Color: Blue
• Housing color: Black+ Green

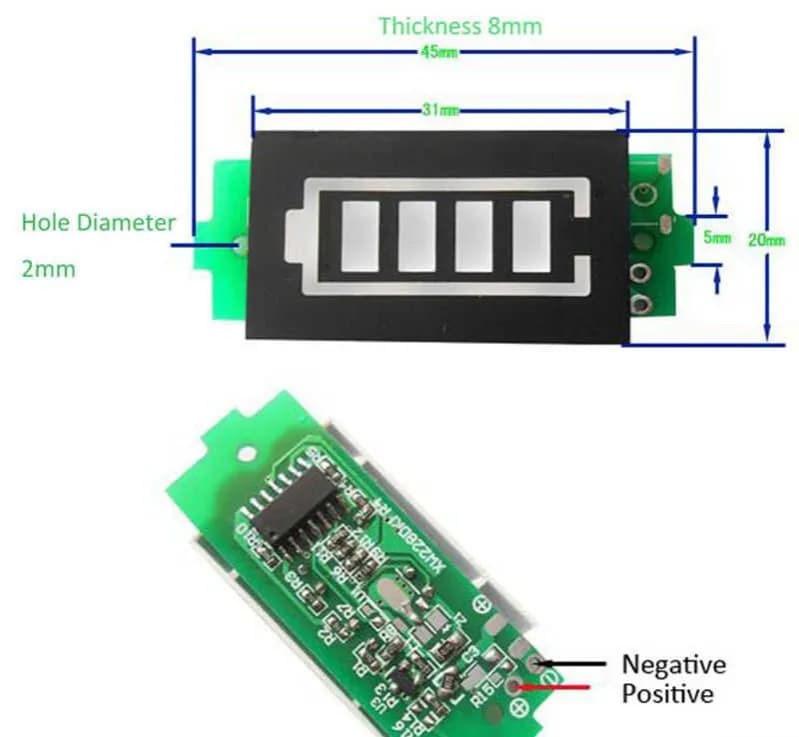

• Size: 45x20mm
• Material: plastic, electronic components

Show electricity quantity parameter:

• 1. When the battery voltage is over N * 3.3V, it will turn on 1 block of electricity (note: N represents the battery quantity).
• 2. When the battery voltage is over N * 3.5V, it will turn on 2 blocks of electricity amount.
• 3. When the battery voltage is over N * 3.7V, it will turn on 3 blocks of electricity amount.
• 4. When the battery voltage is over N * 3.9V, it will turn on 4 blocks of electricity amount.
• 5. When the battery voltage is less than N * 3.3V, the 4 block display will be off; It represents that the battery is less than 3.3V, and you can charge the battery.

Features:

• High reliability, low cost and compact size.
• Low charge warning LED flash.
• Memory option to store electricity.
• It is specially designed to monitor the power level of the battery during charging or discharging.
• Provides instant battery status for effective charge management.
• 4 segment LED bar graph display.
• Easy to install and operate
• Battery type electricity quantity display
• Wide application fields: lithium battery
• Using Method: connect display board positive and negative port with tested battery positive and negative port, digital tube will display real-time battery electricity quantity

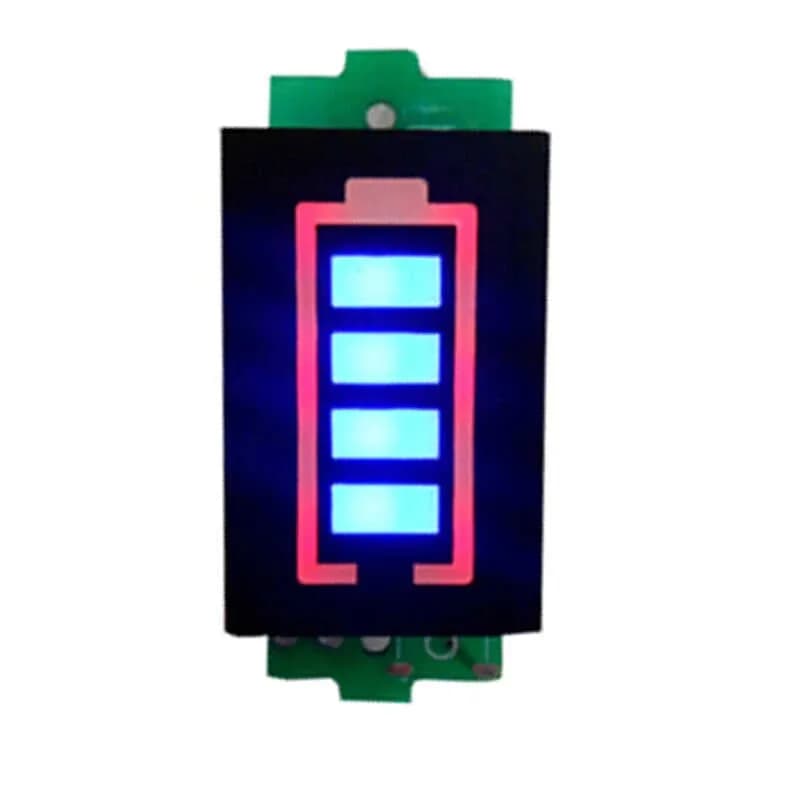

• Digital Color: outline red, display block blue (when battery electricity quantity is full, it will be all on)

Applicable:

Polymer lithium battery / electric vehicle battery / other electrical equipment. To the positive and negative terminals of the battery. The digital tube displays real-time battery power.Includes nickel-metal hydride batteries, 18650 and polymer lithium battery packs, lead-acid storage, electric vehicle batteries and electric equipment. Includes nickel-metal hydride batteries, 18650 and polymer lithium battery packs, lead-acid storage, electric vehicle batteries and electric equipment

Package Include:

• 1 x Battery Capacity 4 Digit Indicator Meter 3.7v 4.2v 1S-8s
