Diode 1N4007 1000V 1A General Purpose Rectifier Diode
General purpose diodes are two-terminal electronic components that allow current to flow in only one direction, from an anode (+) to a cathode. These simple semiconductors are PN junctions with a positive or P-region with positive ions and a negative or N-region with negative electrons. Applying a forward voltage to the PN junction causes current to flow in only one direction as electrons from the N-region fill “holes” in the P-region. The diodes reverse voltage is the potential barrier that prevents current to flow in the opposite direction, analogous to a pressure rating on a check valve.
1N4007 is a rectifier diode, designed specifically for circuits that need to convert alternating current to direct current. It can pass currents of up to 1 A, and have peak inverse voltage (PIV) rating of 1,000 V.
Specifications:
- Product Name : Rectifier Diodes;
- Model : 1N4007
- Mounting Type: Through Hole
- Color : Black, Silver Tone
- Package:DO-41
- Maximum Recurrent Peak Reverse Voltage :1000V
- Maximum Average Forward Output Current :1A
- Maximum Forward Voltage Drop per element at 1.0A DC :1.1V
- Operating and Storage Temperature Range : (– 65 to +175°C)
- Weight :0.33grams
Features:
- Low forward voltage drop
- Low leakage current
- High forward surge capability
- Peak Repetitive Reverse Voltage: 1000V
- Average Rectified Output Current: 1A
- Low Forward Voltage Drop
- High Surge Current Capability
- Can be used to prevent reverse polarity problem – Half Wave and Full Wave rectifiers – Used as a protection device – Current flow regulators
Applications:
- For use in general purpose rectification of power supplies ,inverters, converters and freewheeling diodes application.

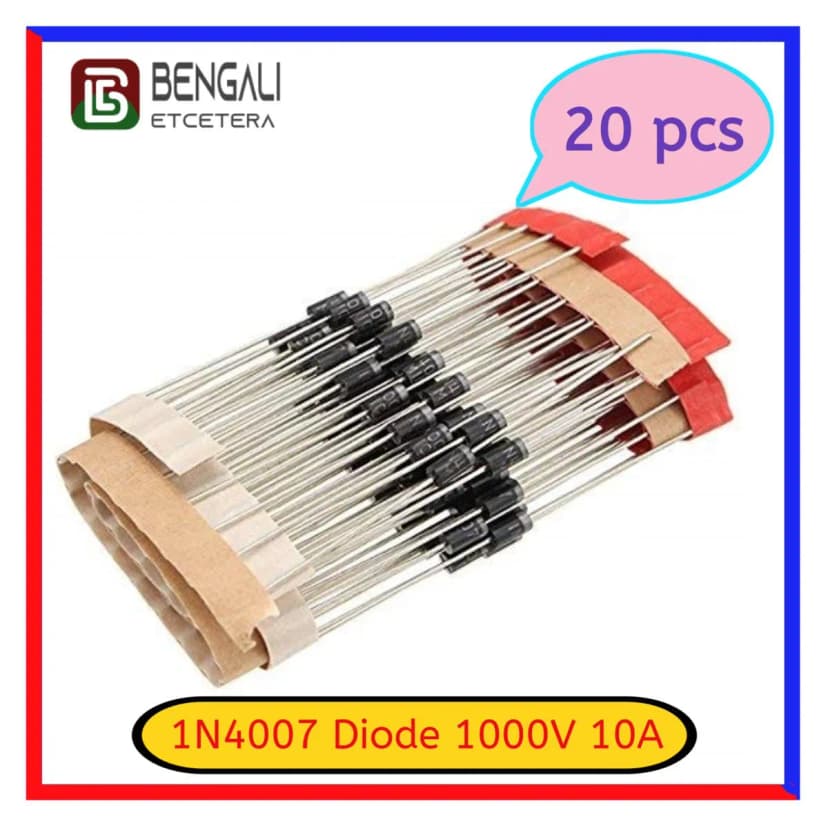

Package Include:Diode 1N4007 1000V 1A General Purpose Rectifier Diode-20p
- Diode 1N4007 1000V 1A General Purpose Rectifier Diode-20p
